TRANS MASTER EDM372
Superior drive tyre for on/off road applications.
Performance
Truck&Bus
M+S
Mix Service

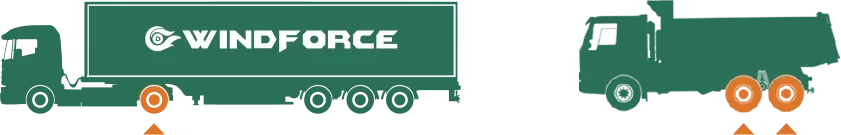

Drive
Traction
Get a one-stop solution
In order to make sure your question or comment reaches the right people, please fil out the brief form and we’ll respond as soon as possible Your private information is absolutely protected.

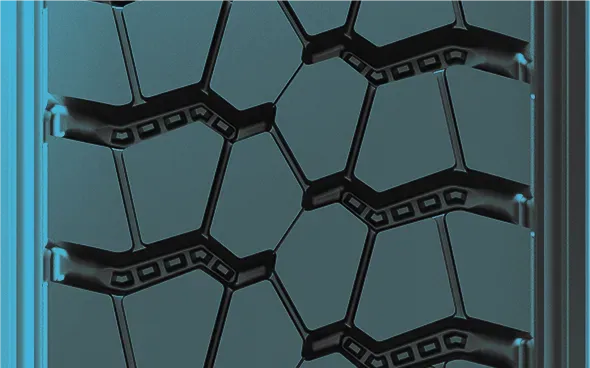

Optimal shoulder design - Minimises treaddamage andretreading cost.

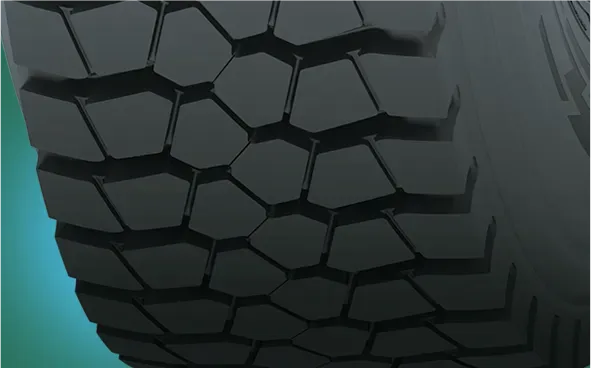

Aggressive lug design - Delivers powerful on/off-road grip, handling and stability.
Advanced carcass and compound construction- Provides excellent durability and extended tyre life due to low heat generation.
Spec
- 17.5"
- 16"
- 20"
- 24"
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 225/80R17.5 | 132/129L | 18 | 6.75 | 15.8 | 805 | 226 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 7.00R16LT | 118/114L | 14 | 5.50F | 14.0 | 785 | 200 |
| 7.50R16LT | 122/118L | 16 | 6.00G | 15.5 | 815 | 215 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 9.00R20 | 144/142K | 16 | 7.0 | 15.0 | 259 | 1019 |
| 10.00R20 | 149/146K | 18 | 7.5 | 18.0 | 1065 | 278 |
| 11.00R20 | 152/149K | 18 | 8.0 | 16.0 | 1085 | 293 |
| 12.00R20 | 156/153K | 20 | 8.5 | 19.5 | 1136 | 315 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 12.00R24 | 162/160K | 22 | 8.5 | 19.0 | 1238 | 315 |
| 325/95R24 | 162/160K | 22 | 9.00 | 19.0 | 1228 | 325 |
