TRANS MASTER EDM370
Drive axle, Off use in mining, construction and logging operations.
Performance
Truck&Bus
Mix Service
Drive
POR
Get a one-stop solution
In order to make sure your question or comment reaches the right people, please fil out the brief form and we’ll respond as soon as possible Your private information is absolutely protected.

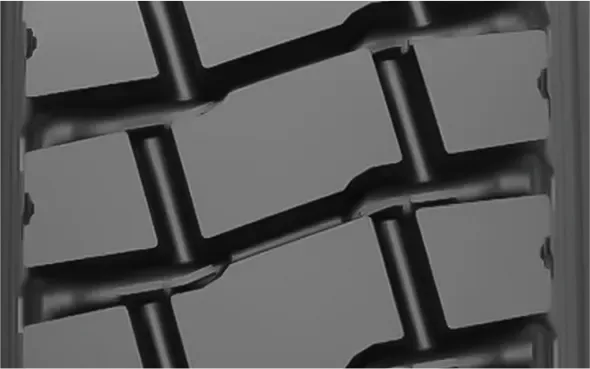

Aggressive lug tread pattern with open shoulder enhances powerful grip and improves self-cleaning capability.

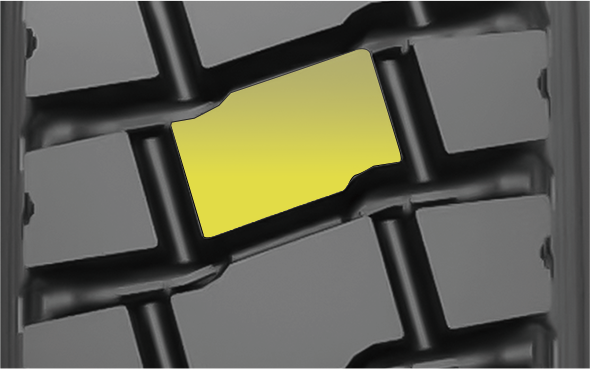

Tread blocks massive tread blocks and specific tread compound offer superb resistance against cuts and penetrations.

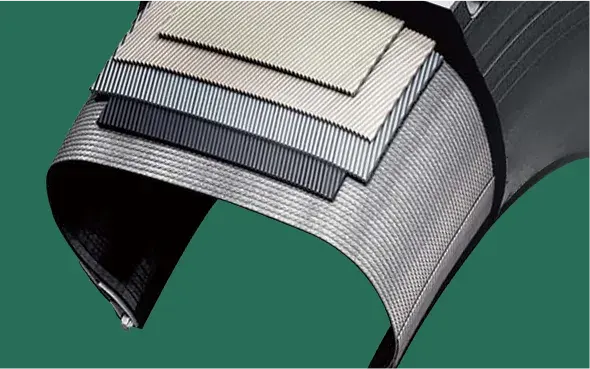

optimised carcass profile with reinforced bead structure ensures excellent durability.
Spec
- 20"
- 24"
- 22.5"
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 10.00R20 | 149/146F | 18 | 7.5 | 20.0 | 1065 | 278 |
| 11.00R20 | 152/149F | 18 | 8.0 | 20.0 | 1096 | 293 |
| 12.00R20 | 156/153F | 20 | 8.5 | 21.0 | 1136 | 315 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 12.00R24 | 162/160K | 22 | 8.5 | 23.0 | 1238 | 315 |
| 12.00R24 | 164/161F | 24 | 8.5 | 23.0 | 1238 | 315 |
| SIZE | LI/SS | PR | STANDARD RIM | TREAD DEPTH (MM) |
OVERALL DIAMETER (MM) |
SECTION WIDTH (MM) |
| 11R22.5 | 148/145J | 18 | 8.25 | 19.5 | 1065 | 279 |
| 12R22.5 | 152/149F | 18 | 9.00 | 19.5 | 1096 | 300 |
| 13R22.5 | 156/151F | 20 | 9.75 | 19.0 | 1136 | 320 |
| 295/80R22.5 | 152/149J | 18 | 9.00 | 20.0 | 1050 | 298 |
| 315/80R22.5 | 157/154J | 20 | 9.00 | 19.0 | 1082 | 312 |
